Product info
-
Specifications

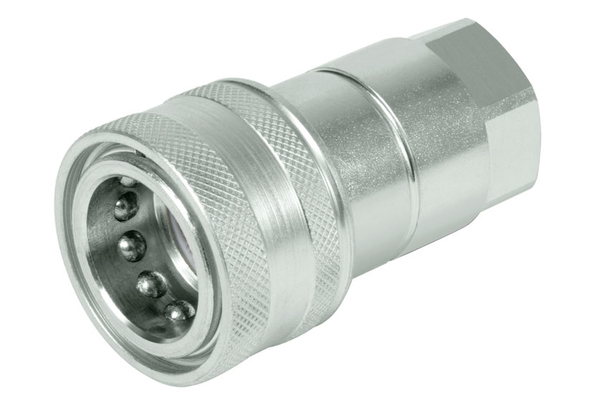

Size: 1 DN: 06 Size: 04 Inch: 1/4 working pressure [bar]: 350 Thread + standard: NPT female thread DIN 3852 Thread [GA]: 1/4 Outer Ø sleeve [mm]: 27,0 Length sleeve [mm]: 55,5 Wrench size connection side plug: 19 SW1 [mm]: 19 l/min at ΔP=2 bar: 12 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Material support ring: PTFE Product title long: Series ST-NV female coupling. Product title short: female coupling Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25°C / +100°C
