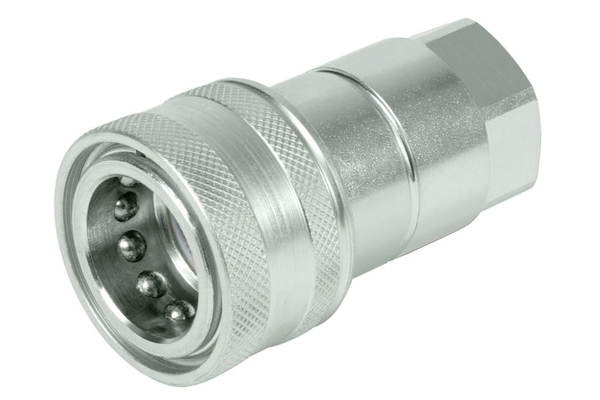

ST-NV female coupling

Similar image

For general applications eg. agricultural technology

To accessories

Detail

Art. No.
ST-NV04BSP06M
%
SALE
ST-NV06BSP10M
%
SALE
ST-NV08BSP12M
%
SALE
ST-NV12BSP16M
%
SALE
ST-NV16BSP20M
%
SALE
ST-NV20BSP25M
%
SALE
ST-NV24BSP32M
%
SALE
ST-NV32BSP40M
%
SALE
ST-NV04NPT06M
%
SALE
ST-NV06NPT10M
%
SALE
ST-NV08NPT12M
%
SALE
ST-NV12NPT16M
%
SALE
ST-NV16NPT20M
%
SALE
Size
1
2
3
4
6
-
8
-
1
2
3
4
6
DN
06
10
12
20
25
32
40
50
06
10
12
20
25
Size
04
06
08
12
16
20
24
32
04
06
08
12
16
Inch
1/4
3/8
1/2
3/4
1
1.1/4
1.1/2
2
1/4
3/8
1/2
3/4
1
working pressure [bar]
350
300
300
300
250
220
200
100
350
300
250
300
250
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
NPT female thread DIN 3852
NPT female thread DIN 3852
NPT female thread DIN 3852
NPT female thread DIN 3852
NPT female thread DIN 3852
Thread [GA]
1/4
3/8
1/2
3/4
1
1.1/4
1.1/2
2
1/4
3/8
1/2
3/4
1
Outer Ø sleeve [mm]
27,6
34,0
38,5
48,5
56,2
70,0
84,0
115,0
27,0
34,0
38,0
47,0
52,0
Length sleeve [mm]
55,0
60,5
68,0
82,5
97,5
117,0
128,0
139,0
55,5
63,0
70,0
86,0
99,0
Wrench size connection side plug
19
24
27
34
41
burst pressure plug uncoupled [bar]
100
burst pressure coupled [bar]
120
burst pressure sleeve uncoupled [bar]
140
SW1 [mm]
22
24
27
36
41
50
60
70
19
24
27
34
41
l/min at ΔP=2 bar
8
28
50
100
180
288
379
757
12
23
45
106
189
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: C-steel, nitrified
    Material Casing: Steel
    Material sealing: Standard NBR, 85 Shore.
    Material support ring: PTFE
    Surface: galvanised and Cr III passivated
    Temperature range [°C]: -20°C / +100°C

Benefit

Cost-efficient type. Interchangeable in size 08 according to ISO7241-1A

Accessories

dust protection

Practical tip

In order to connect against residual pressure - please refer to our pressure relief valve VDM.
