Product info
-
Specifications

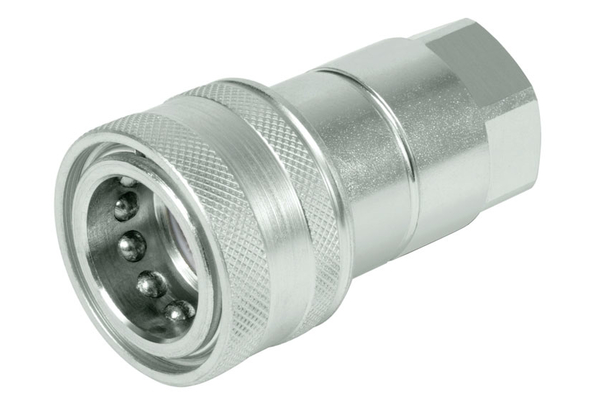

Size: 4 DN: 20 Size: 12 Inch: 3/4 working pressure [bar]: 300 Thread + standard: NPT female thread DIN 3852 Thread [GA]: 3/4 Outer Ø sleeve [mm]: 47,0 Length sleeve [mm]: 86,0 Wrench size connection side plug: 34 SW1 [mm]: 34 l/min at ΔP=2 bar: 106 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Material support ring: PTFE Product title long: Series ST-NV female coupling. Product title short: female coupling Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25°C / +100°C
