Product info
-
Specifications

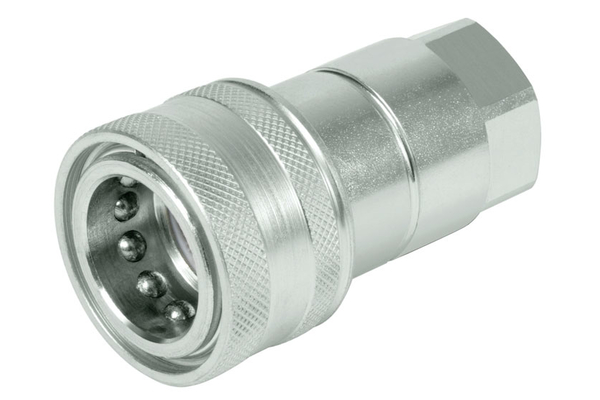

Size: 8 DN: 40 Size: 24 Inch: 1.1/2 working pressure [bar]: 200 Thread + standard: BSP female DIN 3852 Thread [GA]: 1.1/2 Outer Ø sleeve [mm]: 84,0 Length sleeve [mm]: 128,0 SW1 [mm]: 60 l/min at ΔP=2 bar: 379 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Material support ring: PTFE Product title long: Series ST-NV female coupling. Product title short: female coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C / +100°C
