ST6 femal coupling

Similar image
Similar image

For general applications (eg. agricultural technology), push pull function, compatibility according to ISO 7241-1A

To accessories

Detail

Art. No.
ST6-PV0-12BSP16M
%
SALE
ST6-PV12BSP16M
%
SALE
ST6-PV16BSP20M
%
SALE
ST6-PV2-26CEL18-16M
%
SALE
ST6-PV2-30CEL22-20M
%
SALE
ST6-PV2-36CEL28-20M
%
SALE
ST6-PV3-30CES20-16M
%
SALE
ST6-PV3-36CES25-20M
%
SALE
ST6-PV5-26CELS18-16M
%
SALE
ST6-PV5-30CELS22-20M
%
SALE
ST6-PV5-36CELS28-20M
%
SALE
ST6-PV6-30CESS20-16M
%
SALE
ST6-PV6-36CESS25-20M
%
SALE
ST6-PV6-42CESS30-25M
%
SALE
Size
6
6
6
6
6
6
6
6
6
6
6
6
6
6
DN
25
25
25
25
25
25
25
25
25
25
25
25
25
25
Size
16
16
16
16
16
16
16
16
16
16
16
16
16
16
Inch
1
1
1
1
1
1
1
1
1
1
1
1
1
1
working pressure [bar]
225
225
225
225
225
225
225
225
225
225
225
225
225
225
Thread + standard

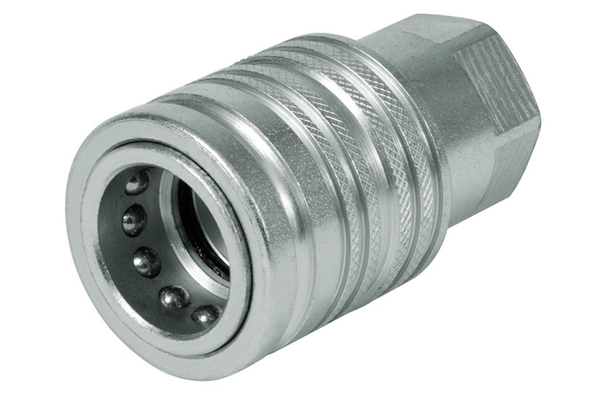

BSP Innengewinde DIN 3852, mit O-Ring Port
BSP female DIN 3852
BSP female DIN 3852
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861

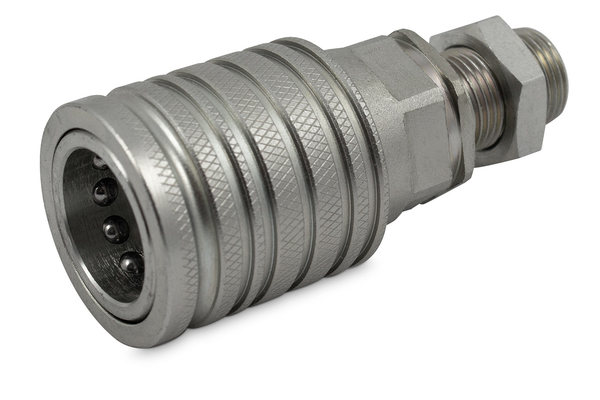

male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
Thread [GA]
3/4
3/4
1
M26x1,5
M30x2
M36x2
M30x2
M36x2
M26x1,5
M30x2
M36x2
M30x2
M36x2
M42x2
Pipe Ø R [mm]
18L
22L
28L
20S
25S
18L
22L
28L
20S
25S
30S

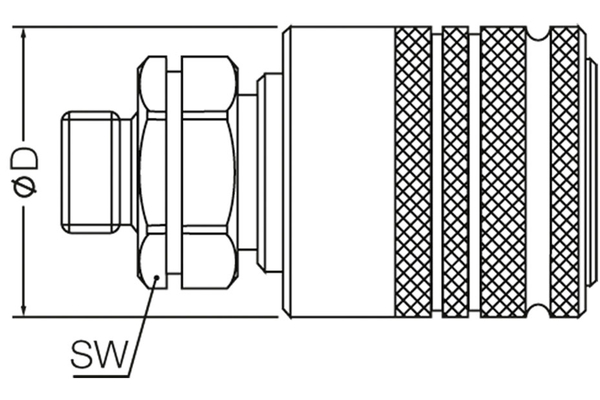

Outer Ø sleeve [mm]
54,0
54,0
54,0
54,0
54,0
54,0
54,0
54,0
54,0
54,0
54,0
54,0
54,0
54,0
Length sleeve [mm]
99,5
99,5
99,5
92.5
94,5
94,5
96,5
98,5
114,5
114,5
114,5
116,5
118,5
120,5
Wrench size connection side sleeve
41
41
41
41
41
41
41
41
41
41
41
41
41
46
burst pressure coupled [bar]
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
GL [mm]
12
12
burst pressure sleeve uncoupled [bar]
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
SW1 [mm]
41
41
41
41
41
41
41
41
41
41
41
41
41
46
l/min at ΔP=2 bar
189
189
189
189
189
189
189
189
189
189
189
189
189
189
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: C-steel, nitrified
    Material Casing: Steel
    Material sealing: NBR 85 Shore
    Material support ring: PTFE
    Surface: Zn-Fe (Chrom III)
    Temperature range [°C]: -25 °C to +100 °C

Benefit

Interchangeable according to the ISO7241-1A standard.

Accessories

dust protection

Practical tip

Can be used as a breakaway coupling.
