Product info
-
Specifications

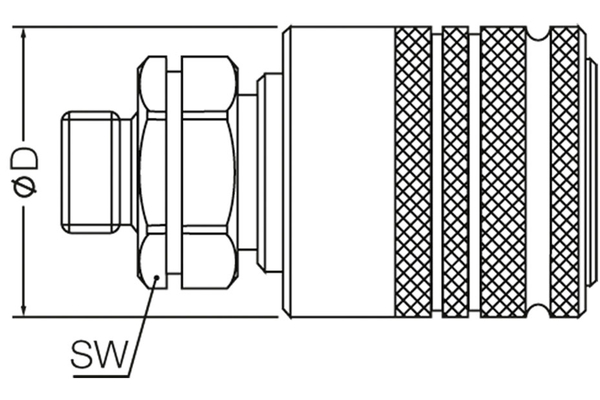

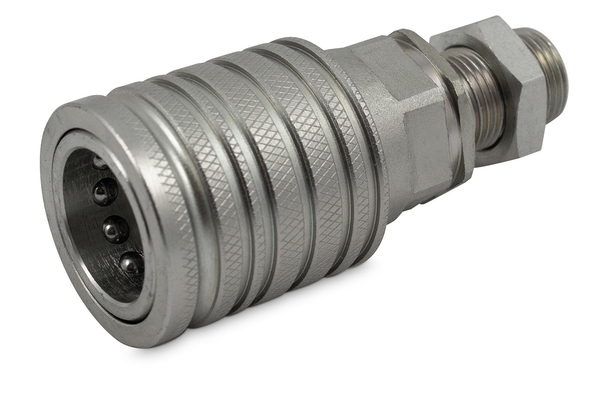

Size: 6 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 225 Thread + standard: male thread CE-Bulkhead light Series, DIN 3861 Thread [GA]: M30x2 Pipe Ø R [mm]: 22L Outer Ø sleeve [mm]: 54,0 Length sleeve [mm]: 114,5 Wrench size connection side sleeve: 41 burst pressure coupled [bar]: 1000 burst pressure sleeve uncoupled [bar]: 1100 SW1 [mm]: 41 l/min at ΔP=2 bar: 189 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST6 female coupling. Product title short: female coupling Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25 °C to +100 °C
