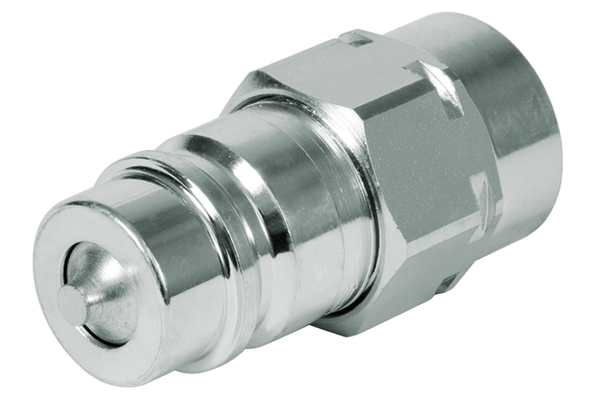

ST6 male coupling

Similar image
Similar image

For general applications (eg. agricultural technology), compatibility according to ISO 7241-1A

To accessories

Detail

Art. No.
ST6-NV12BSP16S
%
SALE
ST6-NV16BSP20S
%
SALE
ST6-NV2-26CEL18-16S
%
SALE
ST6-NV2-30CEL22-20S
%
SALE
ST6-NV2-36CEL28-20S
%
SALE
ST6-NV3-30CES20-16S
%
SALE
ST6-NV3-36CES25-20S
%
SALE
ST6-NV3-42CES30-20S
%
SALE
ST6-NV5-26CELS18-16S
%
SALE
ST6-NV5-30CELS22-20S
%
SALE
ST6-NV5-36CELS28-20S
%
SALE
ST6-NV6-30CESS20-16S
%
SALE
ST6-NV6-36CESS25-20S
%
SALE
ST6-NV6-42CESS30-25S
%
SALE
Size
6
6
6
6
6
6
6
6
6
6
6
6
6
6
DN
25
25
25
25
25
25
25
25
25
25
25
25
25
25
Size
16
16
16
16
16
16
16
16
16
16
16
16
16
16
Inch
1
1
1
1
1
1
1
1
1
1
1
1
1
1
working pressure [bar]
225
225
225
225
225
225
225
225
225
225
225
225
225
225
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
Thread [GA]
3/4
1
M26x1,5
M30x2
M36x2
M30x2
M36x2
M42x2
M26x1,5
M30x2
M36x2
M30x2
M36x2
M40x2
Pipe Ø R [mm]
18L
22L
28L
20S
25S
30S
18L
22L
28L
20S
25S
30S

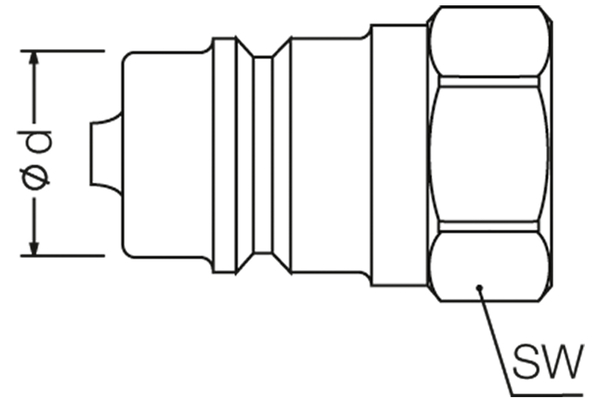

Outer Ø plug [mm]
34,3
34,3
34,3
34,3
34,3
34,3
34,3
34,3
34,3
34,3
34,3
34,3
34,3
34,3
Length plug [mm]
76,0
76,0
92,5
94,5
94,5
96,5
98,5
114,5
114,5
116,5
118,5
120,5
Wrench size connection side plug
41
41
41
41
41
41
41
41
41
41
41
46
l/min at ΔP=2 bar
189
189
189
189
189
189
189
189
189
189
189
189
189
189
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: plug
    Material: C-steel, nitrified
    Material Casing: Steel
    Material sealing: NBR 85 Shore
    Material support ring: PTFE
    Surface: galvanised and Cr III passivated
    Temperature range [°C]: -25°C to +100 °C

Benefit

Interchangeable according to the ISO7241-1A standard.

Accessories

dust protection

Practical tip

Can be used as a breakaway coupling.
