Product info
-
Specifications

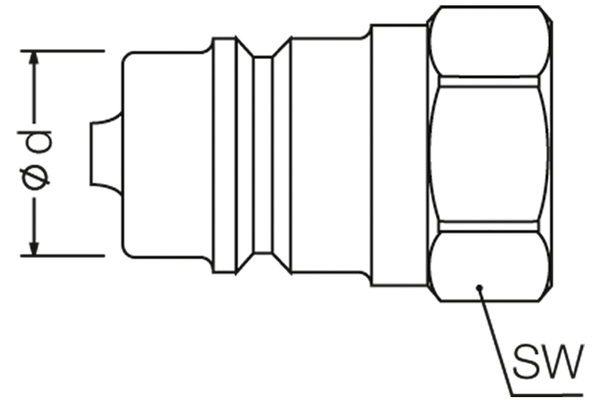

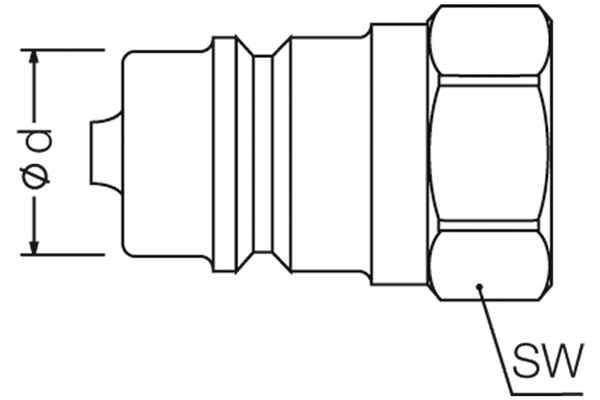

Size: 6 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 225 Thread + standard: male thread CE-Bulkhead light Series, DIN 3861 Thread [GA]: M30x2 Pipe Ø R [mm]: 22L Outer Ø plug [mm]: 34,3 Length plug [mm]: 114,5 Wrench size connection side plug: 41 l/min at ΔP=2 bar: 189 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: plug Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST6 male coupling. Product title short: male coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C to +100 °C
