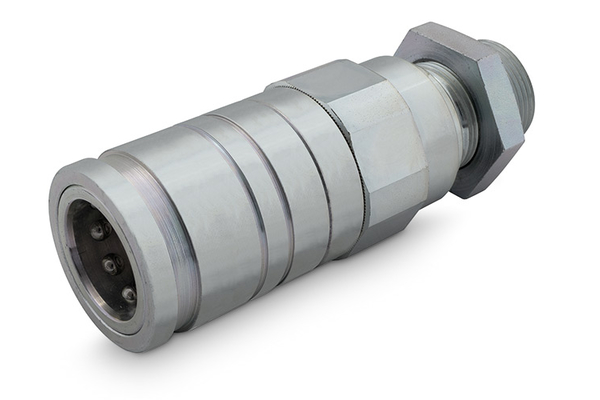

STDR-RSD501 female coupling

Similar image
Similar image

Standard coupling for general applications in the field of agricultural technology, compatibility with Parker series RSD501

To accessories

Detail

Art. No.
STDR-RSD501-CELS12-M
%
SALE
STDR-RSD501-CELS15-M
%
SALE
STDR-RSD501-CELS18-M
%
SALE
Size
3
3
3
DN
12
12
12
Size
08
08
08
Inch
1/2
1/2
1/2
working pressure [bar]
250
250
250
Thread + standard
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
Thread [GA]
M18x1,5
M22x1,5
M26x1,5
Pipe Ø R [mm]
12L
15L
18L

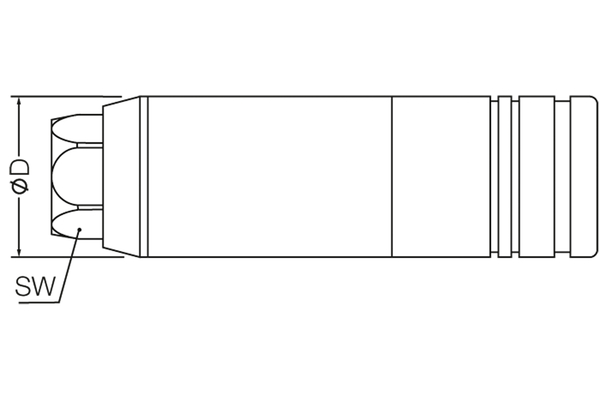

Outer Ø sleeve [mm]
38,0
38,0
38,0
Length sleeve [mm]
112,5
109,5
109,5
Wrench size connection side sleeve
38
38
38
SW1 [mm]
38
38
38
Quantity


Product info

  • Specifications
    Applications: Agrartechnik
    Female or male coupling: sleeve
    Material Casing: Steel
    Material sealing: NBR 85 Shore
    Material support ring: PTFE
    Surface: galvanised and Cr III passivated
    Temperature range [°C]: -25 °C to +100 °C

Benefit

Interchangeable with Parker RSD501
