Product info
-
Specifications

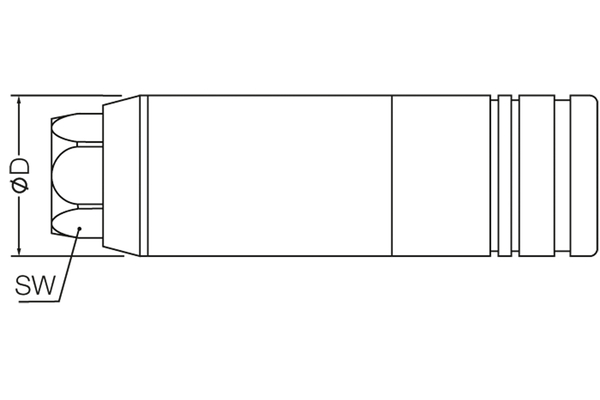

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: male thread CE-Bulkhead light Series, DIN 3861 Thread [GA]: M26x1,5 Pipe Ø R [mm]: 18L Outer Ø sleeve [mm]: 38,0 Length sleeve [mm]: 109,5 Wrench size connection side sleeve: 38 SW1 [mm]: 38 Applications: Agrartechnik Female or male coupling: sleeve Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: . Surface: galvanised and Cr III passivated Temperature range [°C]: -25 °C to +100 °C
