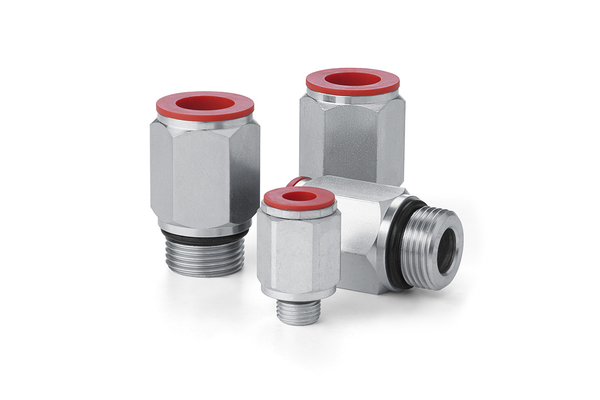

WEO Couplings - Male SAE J514 O-Ring Boss - Series 826

Detail

working pressure [bar]
350
350
350
350
350
350
350
Series
826
826
826
826
826
826
826

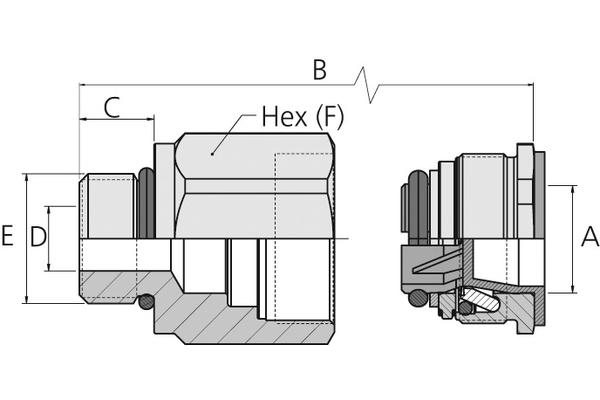

F
20
24
28
28
28
32
41
D
4,5
7,0
9,5
12,7
14,5
15,0
21,0
E
7/16"-20UNF
9/16"-18UNF
3/4"-16UNF
7/8"-14UNF
1.1/16"-12UN
1.1/16"-12UN
1.5/16"-12UN
B
35,4
39,9
40,5
42,1
44,5
55,0
64,0
C
9,0
10,0
11,0
12,6
15,0
15,0
15,0
A
10,0
13,0
16,0
16,0
16,0
23,0
30,0
Quantity


Product info

  • Specifications
    Connection type 1: Couplings. 1/4"
    Material: hardened sT-l
    Surface: CrIII
    Temperature range and resistance [°C]: -30°C to +100°C
