C148100808

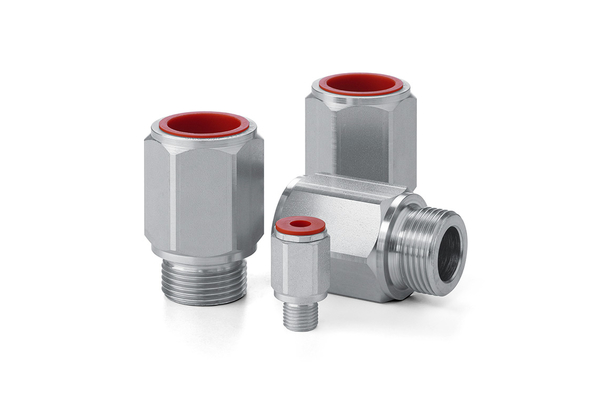

WEO series 810

Product info

• Technical data

  Working pressure [bar]:	350
  Series:	810

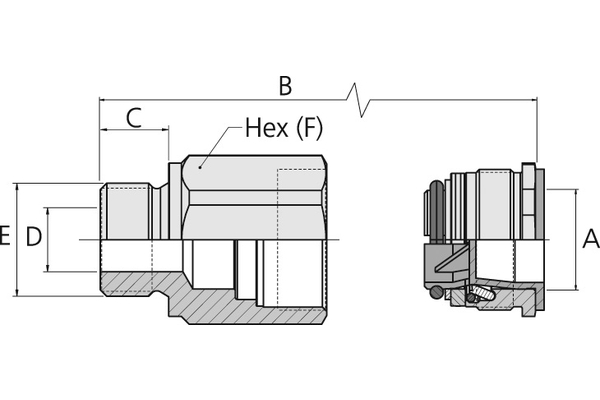

  F:	28
  D:	9,5
  E:	1/2" (13,6mm)
  B:	43,5
  C:	14,0
  A:	16,0
  Connection type 1:	Couplings, 1/2"
  Material:	hardened sT-l
  Surface:	CrIII
  Temperature range and resistance [°C]:	-30°C to +100°C
