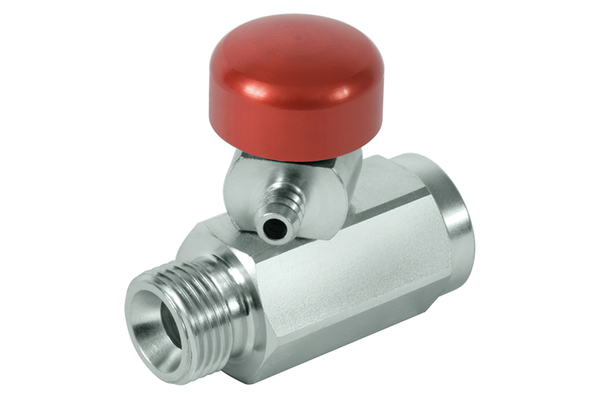

VDM-12NPT-1/12NPT
Pressure relief valve

Product info

• Specifications

  DN:	12
  Size:	08
  working pressure [bar]:	350
  thread + standard:	NPT internal thread DIN 3852 / NPT external thread DIN 3852

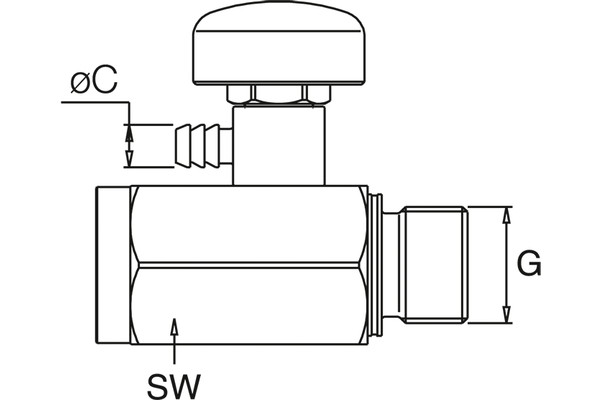

  SW [mm]:	30
  Ø C [mm]:	8,0
  Thread [G]:	1/2
  Material:	steel
  Material Casing:	Steel
  Material sealing:	Standard NBR, 85 Shore. Backup ring PTFE
  Note:	-
  Product title long:	pressure relief valve VDM.
  Surface:	galvanised and Cr III passivated
  Temperature range [°C]:	-25°C / +125°C
