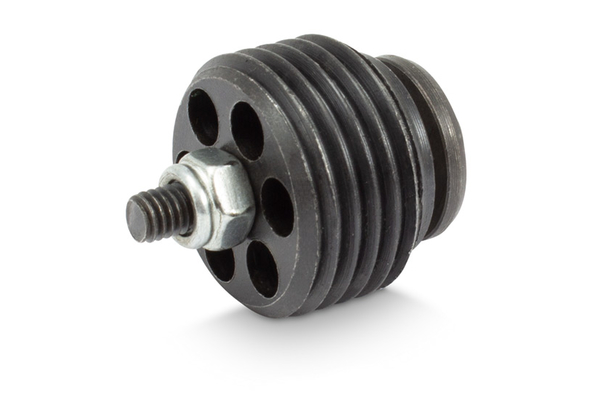

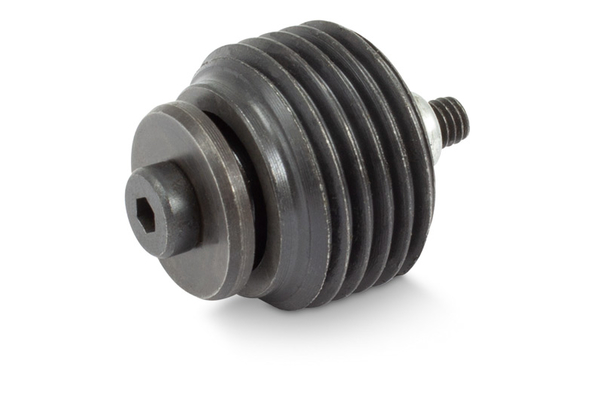

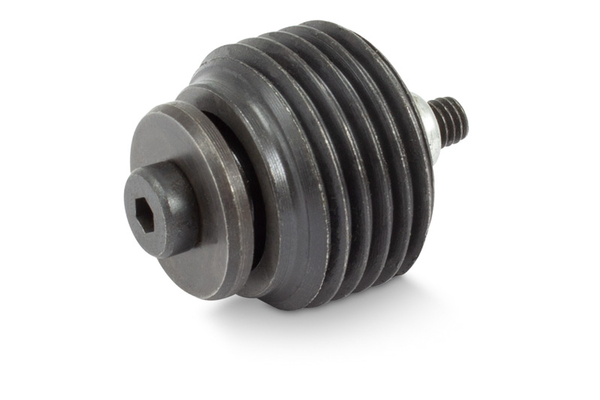

Valve for RBS

Similar image
Similar image
Similar image

Safety element in hydraulic circuits. In case of a bursting hose/pipe the valve closes immediately and prevents the medium from flowing into the environment.

To accessories

Detail

Art. No.
RBS-R1/4Q25P350
%
SALE
RBS-R3/8Q50P350
%
SALE
RBS-R1/2Q80P350
%
SALE
RBS-R3/4Q150P350
%
SALE
DN
6
10
12
20
working pressure [bar]
350
350
350
350

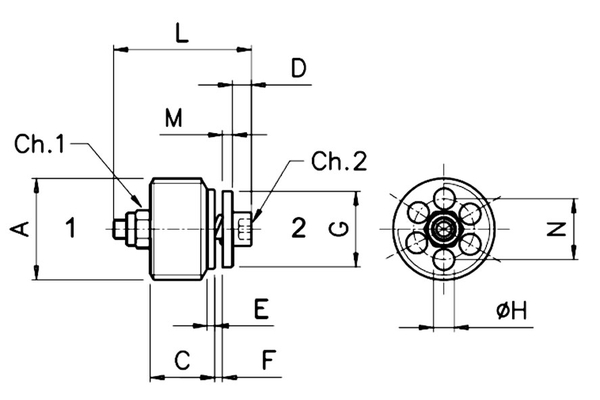

L1 [mm]
19
23
29
34
SW1 [mm]
5,5
5,5
7
7
SW2 [mm]
2,5
2,5
3
3
Thread [G]
1/4" / 10mm
3/8" / 12,5mm
1/2" / 15mm
3/4" / 17mm
l/min at ΔP=2 bar
25
50
80
150
Quantity


Product info

Benefit

Prevents a contamination of the environment and also ensures a maximum safety on lifting applications.

Accessories

Body for RBS

Practical tip

To ensure the proper function please position the valve as close to the cylinder as possible. We recommend to set the volume for activation 50% above the operating pressure.
