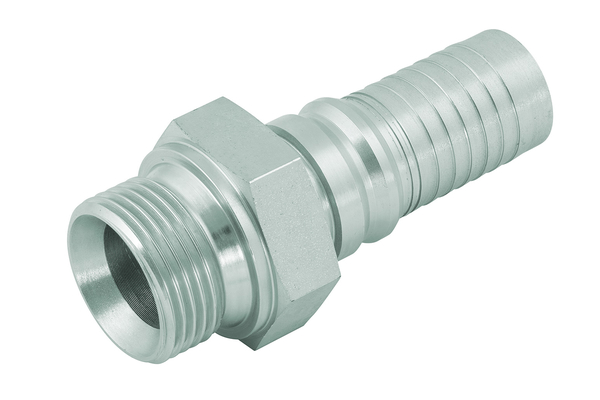

AGR (HAI)

Detail

Art. No.
DN
19
25
25
31
38
51
Thread + standard
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread

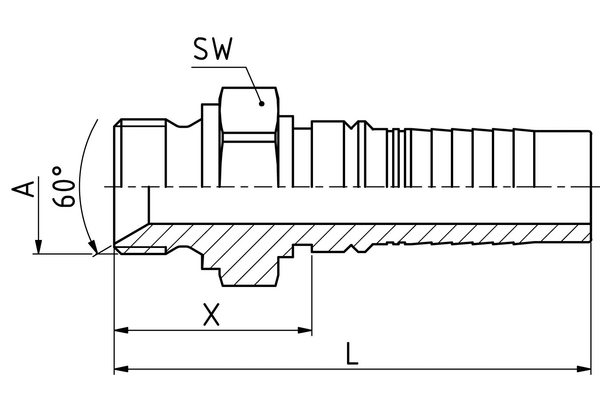

Connection thread A
3/4-14
G 1"
G1.1/4"
1.1/4-11
1.1/2-11
G2"-11
X [mm]
34,0
40,0
44,1
45,2
48,5
55,5
SW1 [mm]
32
41
50
50
55
70
Quantity


Product info

  • Specifications
    Connection name Indunorm: BM
    Connection type: AGR
    Construction form:
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI

Practical tip

Easy identification of the threaded connections with the identification panel AW5-40. The plastic caps XK .. protect against dirt and damage.
