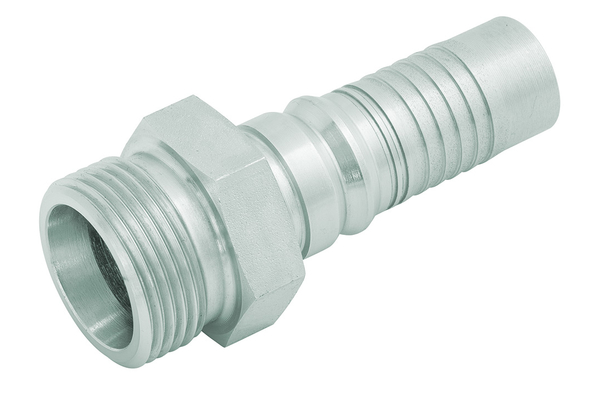

CES (HAI)

Detail

DN
16
19
19
19
25
25
31
38

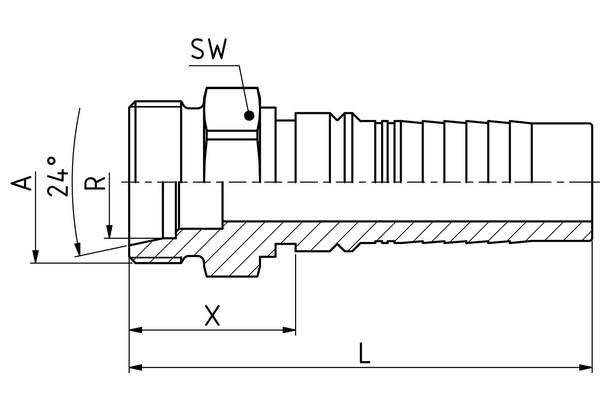

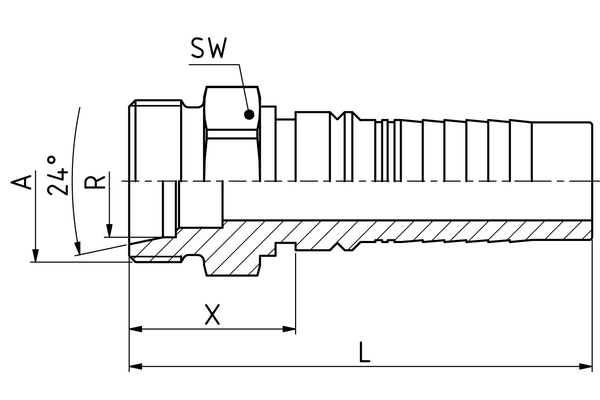

Thread + standard
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Connection thread A
M30X2
M30x2
M36X2
M42x2
M36x2
M42X2
M52X2
M52x2
X [mm]
31,0
31,2
35,0
39,6
36,8
40,0
45,2
49,4
SW1 [mm]
32
32
36
46
36
46
55
55
Quantity


Product info

  • Specifications
    Connection name Indunorm: ME
    Connection type: CES
    Construction form:
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI

Practical tip

The cutting ring pre-assembly should take place in the hardened flaring tool RV..VM-L/S. For the correct assembly of the cutting rings, please refer to our assembly instructions in the technical annex.
