Product info
-
Technical data

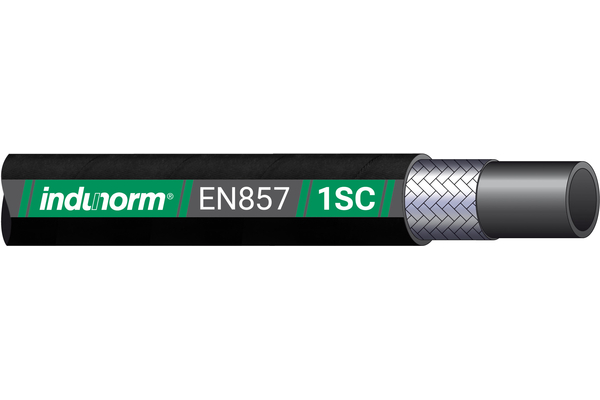

DN: 10 Size: 6 Inch: 3/8" Inner Ø [mm]: 9,8 bending radius [mm]: 90 Working pressure [bar]: 180 burst pressure [bar]: 720 Standard ferrule: XV06C Outer Ø max. [mm]: max. 16,9 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant, black Inner tube: Synthetic rubber Media: water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 857 - 2SC Reinforcement: high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C application: medium pressure applications number of layers: 1
