1SN12

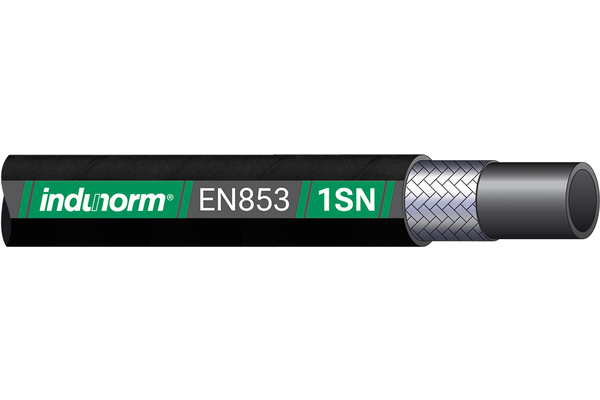

Braided hose 1SN

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Outer Ø [mm]:	20,0
  Inner Ø [mm]:	13,0
  bending radius [mm]:	180
  working pressure [bar]:	160
  burst pressure [bar]:	640
  Safety factor:	4:1

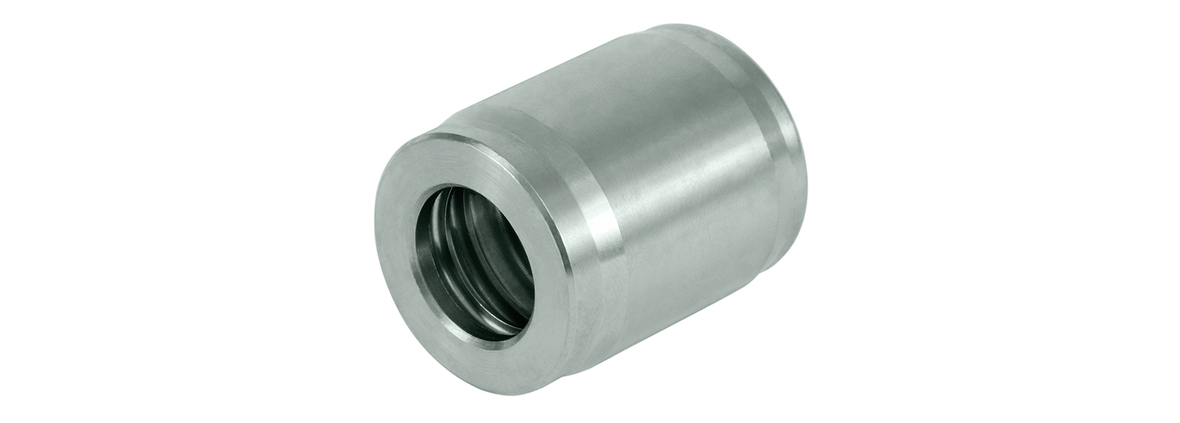

  Standard ferrule:	XVN08
  Standard ferrule stainless steel:	XP-P5-08VA
  Weight [kg]:	0,360
  Static test pressure [bar]:	320
  Outer Ø max. [mm]:	20,6
  Braid diameter [mm]:	17,9
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 1SN
  Reinforcement:	1 layer of high tensile steel wire
  Temperature range [°C]:	- 40 ° C to + 100 ° C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	1
