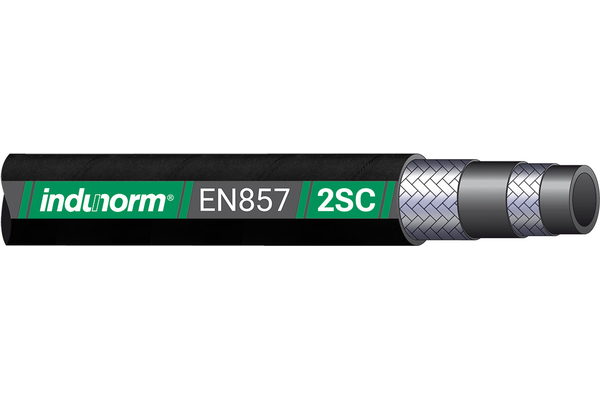

Braided Hose 2SC (EN 857 - 2SC)

Hydraulic hose for high pressure applications, according to EN 857 - 2SC

To accessories

Detail

Art. No.

2SC06

2SC08

2SC10

2SC12

2SC16

2SC20

2SC25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

14,7

16,6

23,9

27,6

35,6

Inner Ø [mm]

6,6

8,3

9,9

13,0

16,4

19,5

26,0

bending radius [mm]

130

170

200

250

working pressure [bar]

400

350

330

275

250

215

165

burst pressure [bar]

1600

1400

1320

1100

1000

860

660

Safety factor

4:1

Standard ferrule

XVN04

XVN05

XVN06

XVN08

XVN10

XVN12

XVN16

Weight [kg]

0,25

0,32

0,35

0,44

0,61

0,77

1,15

Static test pressure [bar]

800

700

660

550

500

430

330

Outer Ø max. [mm]

16,0

18,3

21,5

24,7

28,6

36,6

Braid diameter [mm]

11,0

12,6

14,7

18,0

21,9

25,7

32,9

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant, black
Inner tube:	Synthetic rubber, black
MSHA-Approval:	no
Media:	water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 857 - 2SC
Reinforcement:	2 layers of high tensile steel wire braid
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
application:	High-pressure applications
max operating temperature [°C]:	+100°C
number of layers:	2
