Product info
-
Technical data

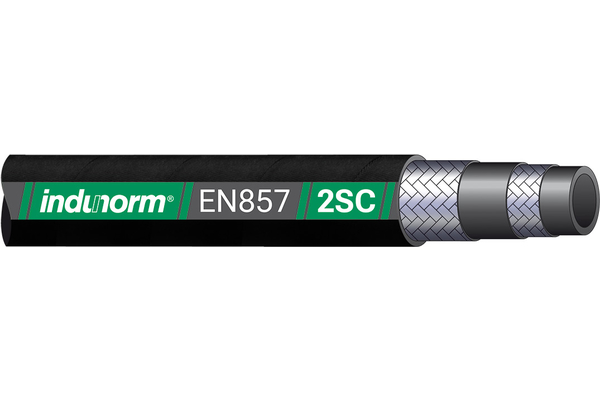

DN: 19 Size: 12 Inch: 3/4 Outer Ø [mm]: 27,6 Inner Ø [mm]: 19,5 bending radius [mm]: 200 working pressure [bar]: 215 burst pressure [bar]: 860 Safety factor: 4:1 Standard ferrule: XVN12 Weight [kg]: 0,77 Static test pressure [bar]: 430 Outer Ø max. [mm]: 28,6 Braid diameter [mm]: 25,7 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant, black Inner tube: Synthetic rubber, black MSHA-Approval: no Media: water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 857 - 2SC Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C application: High-pressure applications max operating temperature [°C]: +100°C number of layers: 2
