Product info
-
Specifications

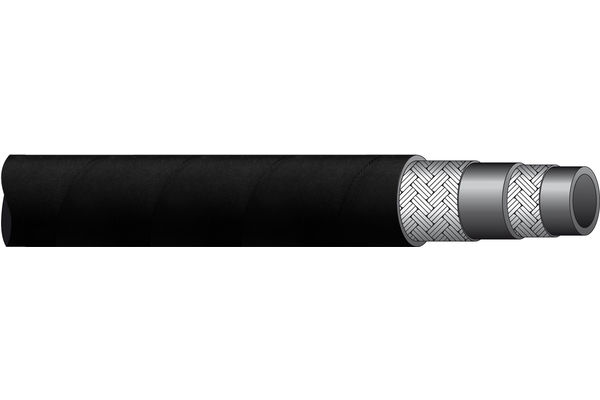

DN: 12 Size: 08 Inch: 1/2 Outer Ø [mm]: 21,7 Inner Ø [mm]: 12,7 bending radius [mm]: 85 working pressure [bar]: 93 burst pressure [bar]: 440 Safety factor: 4:1 Standard ferrule: XVTE08 Weight [kg]: 0,305 Static test pressure [bar]: 186 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 854 - 3 TE Reinforcement: Textile braid, double layer Temperature range [°C]: - 40 ° C to + 100 ° C max operating temperature [°C]: +100°C number of layers: 2
