Throttlefree swivel union DSVW/body (inch)

Similar image
Similar image

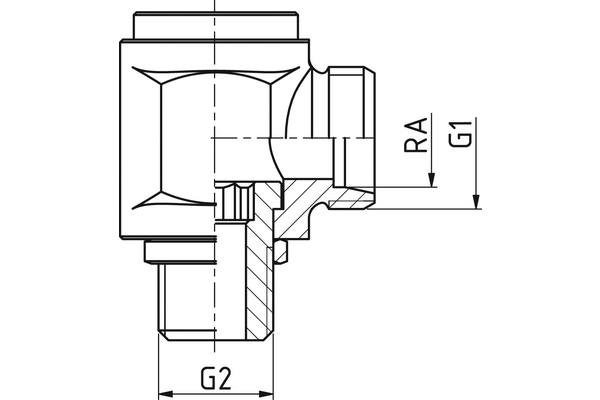

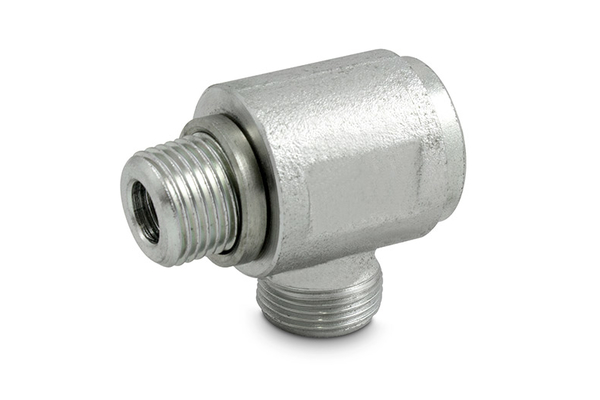

Throttle-free swivel screw-fitting, inch

To accessories

Detail

Art. No.
RV08DSVW-LR/KÖ
%
SALE
RV15DSVW-LR/KÖ
%
SALE
working pressure [bar]
250
250
burst pressure [bar]
1000
1000
Pipe Ø R [mm]
8
15
Thread [G1]
M14x1,5
M22x1,5
Thread [G2]
G 1/4"
G 1/2"
Series
L
L
SW1 [mm]
22
32
SW2 [mm]
6
12
Quantity


Product info

  • Specifications
    Connection type 1: Metric 24°
    Connection type 2: Imperial
    Construction form: Angle 90°
    Description: Thrustless angular swivel screw connection
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free
