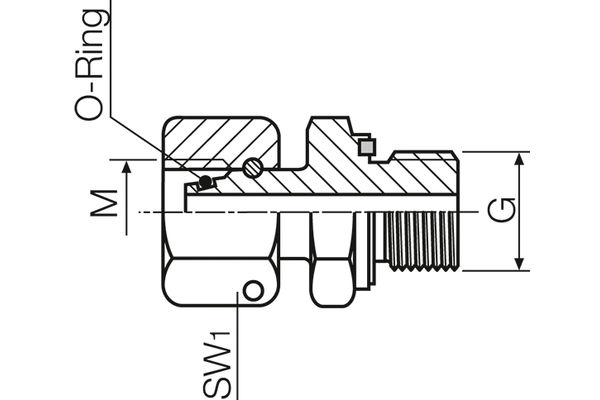

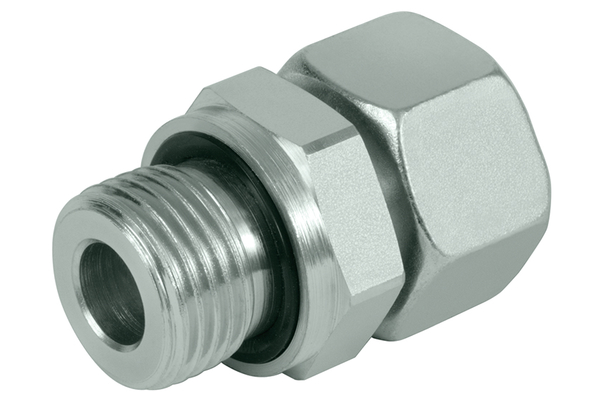

Straight male union with 24° DKO swivel GES/O/ED (inch)

Straight male union (EGE) with elastic seal, 24° DKO swivel, inch

To accessories

Detail

Art. No.

RV12GES/O1/4SR/ED

RV06GES/O-LR/ED

RV08GES/O-LR/ED

RV10GES/O-LR/ED

RV12GES/O-LR/ED

RV15GES/O-LR/ED

RV18GES/O-LR/ED

RV22GES/O-LR/ED

RV28GES/O-LR/ED

RV35GES/O-LR/ED

RV42GES/O-LR/ED

RV06GES/O-SR/ED

RV08GES/O-SR/ED

RV10GES/O-SR/ED

RV12GES/O-SR/ED

RV14GES/O-SR/ED

RV16GES/O-SR/ED

RV20GES/O-SR/ED

RV25GES/O-SR/ED

RV30GES/O-SR/ED

RV38GES/O-SR/ED

working pressure [bar]

630

315

160

630

400

315

burst pressure [bar]

2520

1260

640

2520

1600

1260

Pipe Ø R [mm]

Thread [G1]

M20x1,5

M12x1,5

M14x1,5

M16x1,5

M18x1,5

M22x1,5

M26x1,5

M30x2

M36x2

M45x2

M52x2

M14x1,5

M16x1,5

M18x1,5

M20x1,5

M22x1,5

M24x1,5

M30x2

M36x2

M42x2

M52x2

Thread [G2]

G 1/4"

G 1/8"

G 1/4"

G 3/8"

G 1/2"

G 3/4"

G 1"

G 1.1/4"

G 1.1/2"

G 1/4"

G 3/8"

G 1/2"

G 3/4"

G 1"

G 1.1/4"

G 1.1/2"

Series

O-Ring 1

4x1,5

6x1,5

7,5x1,5

9x1,5

12x2

15x2

20x2

26x2

23x2,5

38x2,5

4x1,5

6x1,5

7,5x1,5

9x1,5

10x2

12x2

16,3x2,4

20,3x2,4

25,3x2,4

33,3x2,4

SW1 [mm]

SW2 [mm]

Quantity

Product info

Specifications

Connection type 1:	Metric 24°
Connection type 2:	Imperial
Construction form:	Straight
Material:	ST-l
Resistance against red rust [h]:	1000
Resistance against white rust [h]:	500
Surface:	zinc plated, chrom 6-free

Practical tip

The sealing cone fittings with 24 ° cone and o-ring guaranT- a high safety, especially in the case of strong vibrations, pressure shocks, and variations in temperature.
