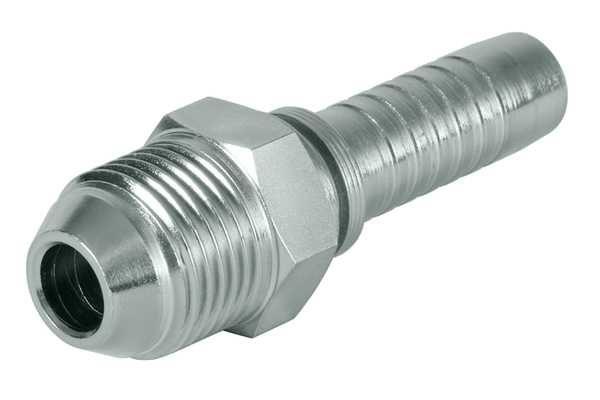

XV12BJM12
Toyota/Mitsubishi with BSP-male thread

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4

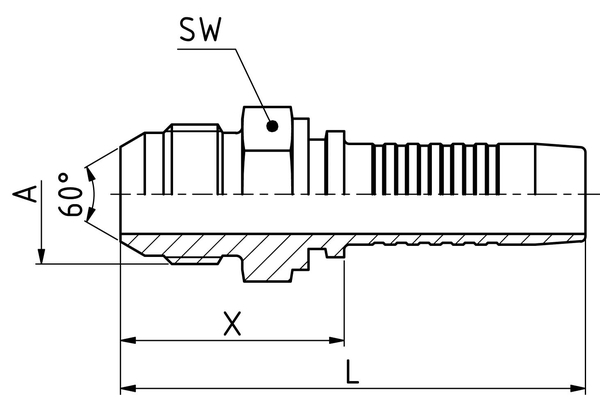

  Thread + standard:	Toyota/Mitsubishi-threaded adapter, 60 ° sealing cone with BSP male thread
  Connection thread A:	G 3/4"
  X [mm]:	39,7
  L1 [mm]:	85,7
  SW1 [mm]:	30
  Connection name Indunorm:	BJM
  Connection type:	Toyota/Mitsubishi with BSP-male thread
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
