Product info
-
Technical data

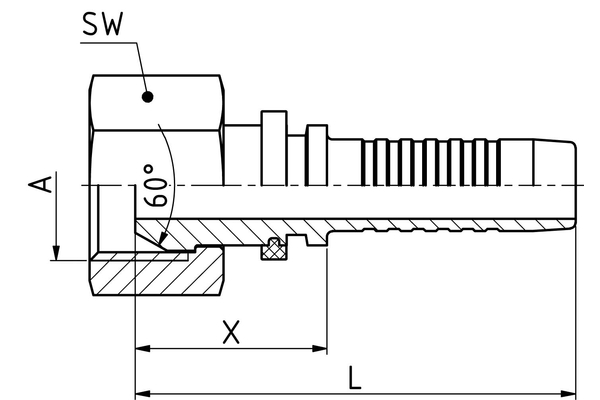

DN: 05 Size: 03 Inch: 3/16 Thread + standard: BSP sealing head, 60 ° cone with union nut, BSP thread Connection thread A: G 1/8" X [mm]: 15,7 L1 [mm]: 38,7 SW1 [mm]: 17 Type of nut: CR Connection name Indunorm: BF Connection type: DKR Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
