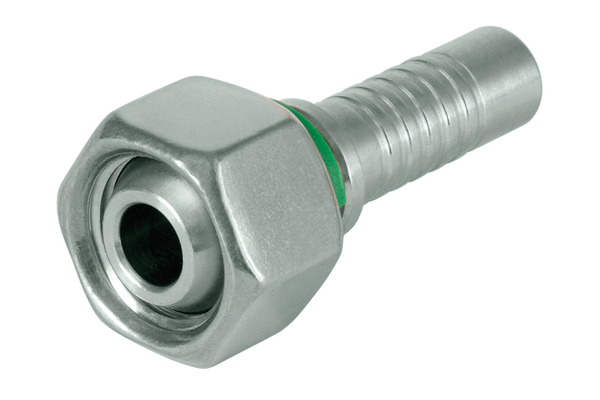

XV06BF05
DKR BF

Product info

• Technical data

  DN:	08
  Size:	5
  Inch:	5/16
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 3/8"

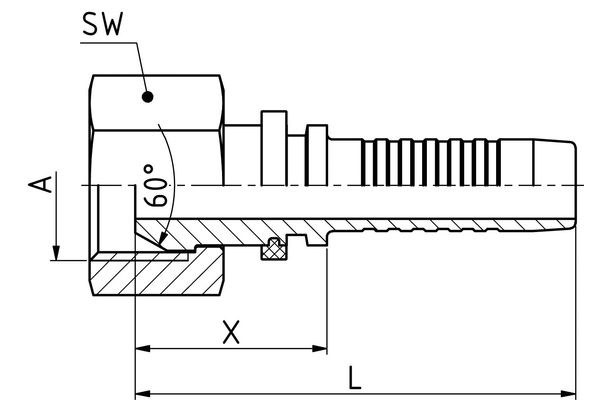

  X [mm]:	26,8
  L1 [mm]:	56,9
  SW1 [mm]:	22
  Type of nut:	CR
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
