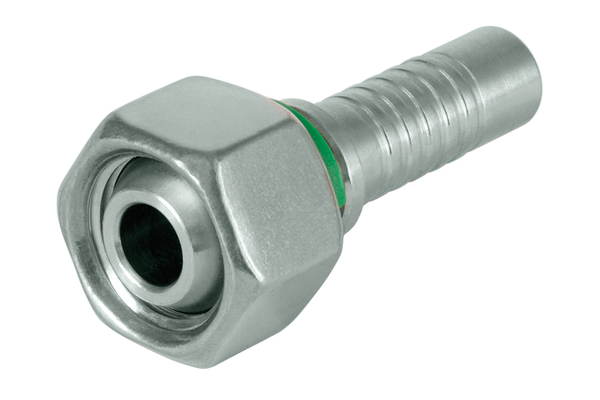

XV06BF06
DKR BF

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8

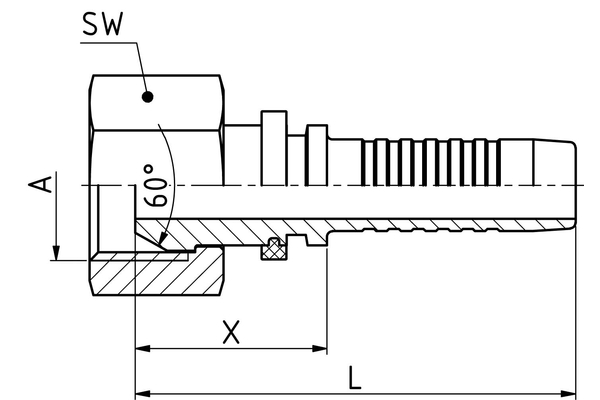

  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 3/8"
  X [mm]:	19,0
  L1 [mm]:	52,5
  SW1 [mm]:	22
  Type of nut:	CR
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
