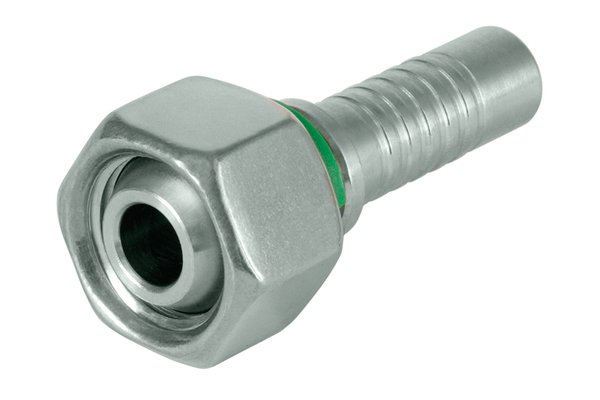

XV08BF10
DKR BF

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8

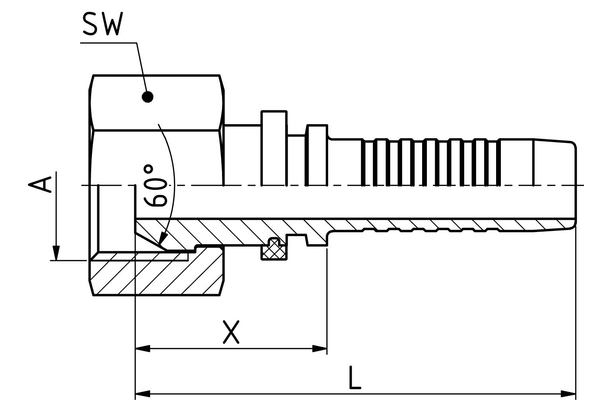

  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 1/2"
  X [mm]:	25,9
  L1 [mm]:	64,4
  SW1 [mm]:	27
  Type of nut:	CR
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
