Product info
-
Technical data

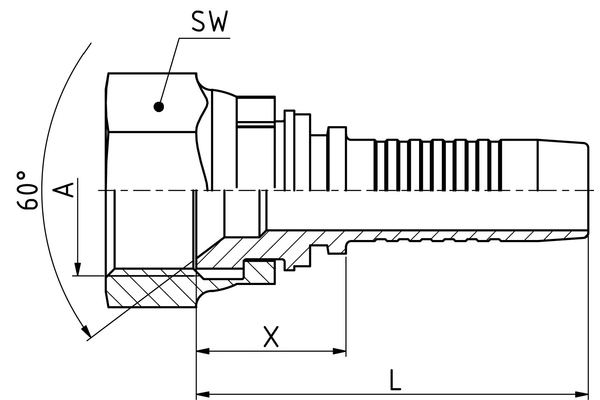

DN: 25 Size: 16 Inch: 1 Thread + standard: Toyota/Mitsubishi-sealing head, 60 ° cone with union nut, BSP thread Connection thread A: G 1" X [mm]: 22,7 L1 [mm]: 77,9 SW1 [mm]: 41 Connection name Indunorm: BJF Connection type: Toyota/Mitsubishi with BSP-union nut Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
