XV18MSOF12-05
DKOL MSOF

Product info

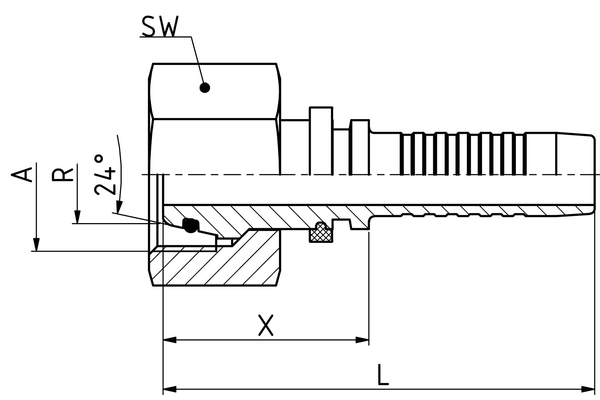

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  Connection thread A:	M18x1,5
  Pipe Ø R [mm]:	12
  X [mm]:	23,9
  L1 [mm]:	50,4
  Outer diameter O-ring [mm]:	11
  Height O-ring [mm]:	1,5
  Height O-Ring [mm]:	1,5
  SW1 [mm]:	22
  Type of nut:	-
  Connection name Indunorm:	MSOF
  Connection type:	DKOL
  Material:	Free cutting steel
  Material O-Ring:	NBR
  Resistance against red rust [h]:	350
  Resistance against white rust [h]:	100
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
