Product info
-
Specifications

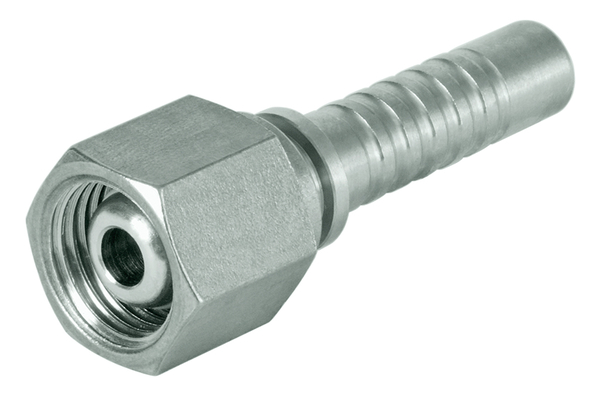

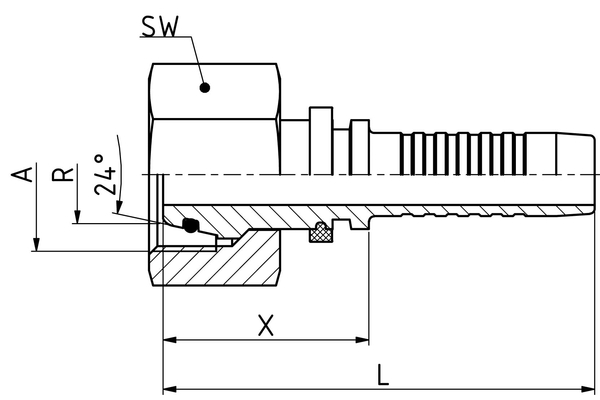

DN: 10 Size: 06 Inch: 3/8 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series Connection thread A: M18x1,5 Pipe Ø R [mm]: 12 X [mm]: 26,0 L1 [mm]: 59,0 Outer diameter O-ring [mm]: 11 Height O-ring [mm]: 1,5 Height O-Ring [mm]: 1,5 SW1 [mm]: 22 Type of nut: - Connection name Indunorm: MSOF Connection type: DKOL Material: Free cutting steel Material O-Ring: NBR Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: Zinc-Nickel Type of fittings: Universal series XV
