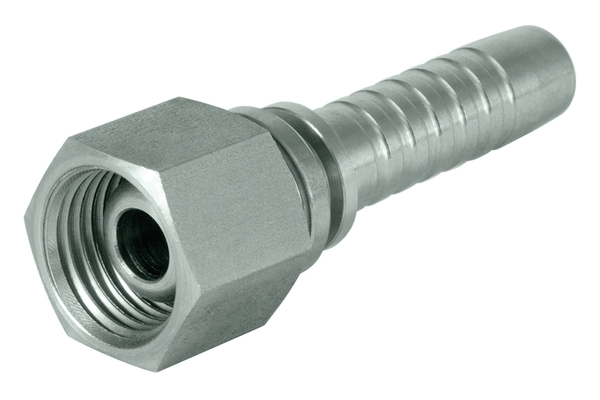

XV14MSF06-03
DKS MSF

Product info

• Technical data

  DN:	05
  Size:	03
  Inch:	3/16
  Thread + standard:	Sealing cone with union nut heavy series

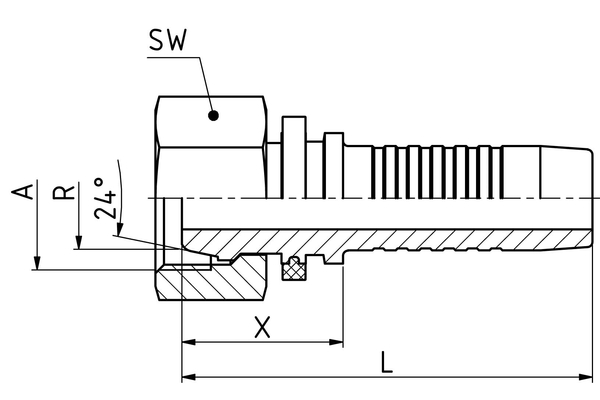

  Connection thread A:	M14x1,5
  Pipe Ø R [mm]:	6
  X [mm]:	24,2
  L1 [mm]:	49,1
  SW1 [mm]:	17
  Connection name Indunorm:	MSF
  Connection type:	DKS
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
