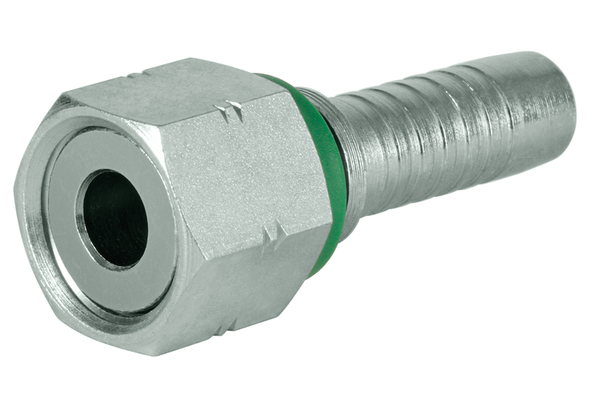

XV08LORF06
ORFS with union nut LORF

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread

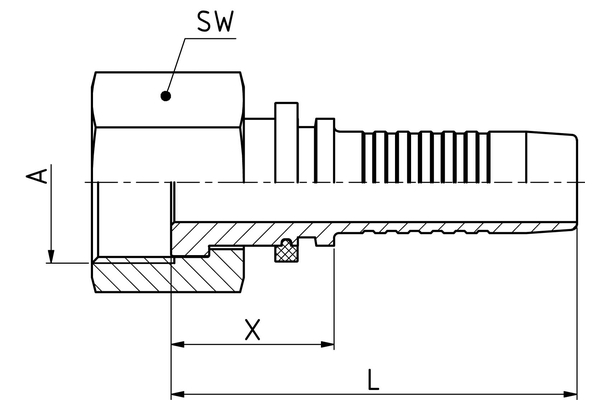

  Connection thread A:	13/16"-16 UN
  X [mm]:	28,4
  L1 [mm]:	61,9
  SW1 [mm]:	24
  Connection name Indunorm:	LORF
  Connection type:	ORFS with union nut
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
