XV16LORF16
ORFS with union nut LORF

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  Connection thread A:	1"7/16-12 UN

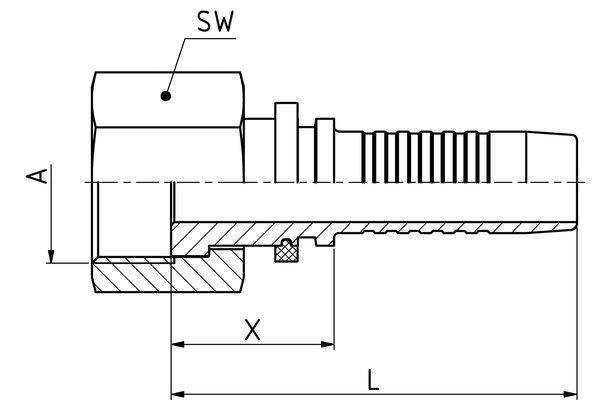

  X [mm]:	34,1
  L1 [mm]:	88,4
  SW1 [mm]:	41
  Connection name Indunorm:	LORF
  Connection type:	ORFS with union nut
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
