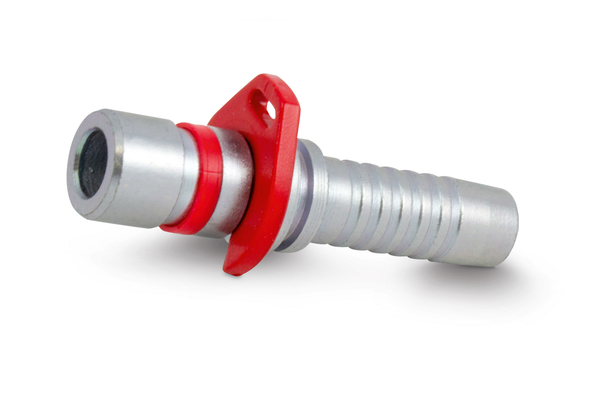

XV08WEO08
WEO - straight connection

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	WEO
  Connection thread A:	1/2" WEO / 16mm

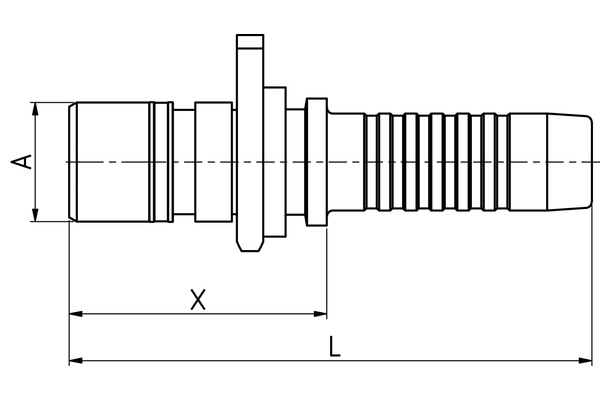

  X [mm]:	35,5
  L1 [mm]:	69,0
  Connection name Indunorm:	WEO
  Connection type:	WEO - Straight hose connection
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
