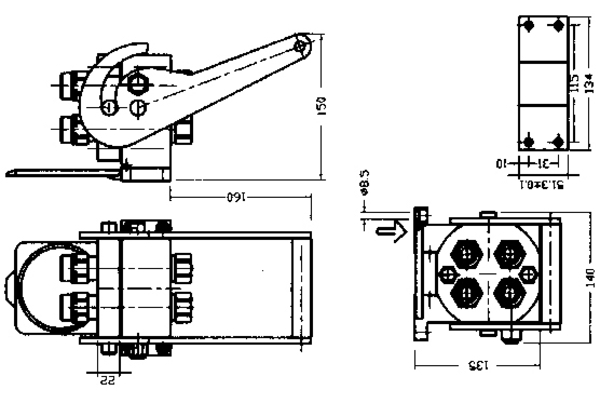

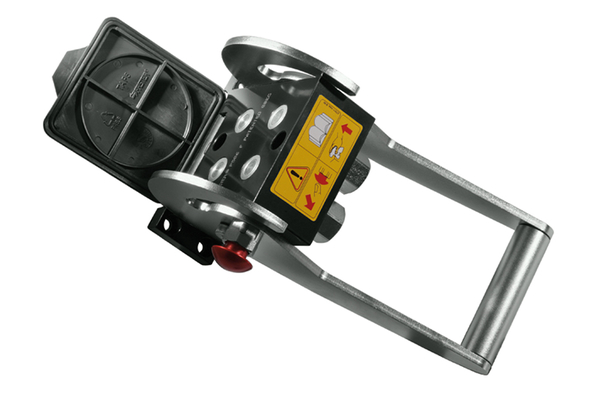

MST5 4x (P506) female coupling DN10 - Cr III

Detail

DN
10
10
10
10
10
10
06 / 10
10 / 12
Size
06
06
06
06
06
06
04 / 06
06 / 08
working pressure [bar]
250
250
250
250
250
250
250
250
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
CE male thread light Seriess, DIN 3861
CE male thread light Seriess, DIN 3861
02/ METRIC - ISO 8434-1-L
BSPP 3/8" FEMALE - ISO 1179-1
BSPP 1/2" FEMALE - ISO 1179-1
Thread [GA]
3/8" Innengewinde DIN 3852
3/8" BSP Innengewinde DIN 3852
1/2" BSP Innengewinde DIN 3852
M18x1,5
M22x1,5
M22x1.5 MALE 15L
G3/8"-19 ; G1/4"-19
G3/8"-19 ; G1/2"-14
Pipe Ø R [mm]
-
-
-
12L
15L
Number of hydraulic inserts
3
4
4
4
4
4
4
4
Number of electrical inserts
1
1
1
Series
2P
2P
2P
2P
2P
Manufacturer ID number
2P506-3-38G F C
2P506-4-38G F C
2P506-4-12G F C
2P506-4-2/18 F C
2P506-4-2/22F C
2P506-A-4-2/2FC
2P506-A-4-38GFC
2P506-1-4-12GFC
max. number of electronic plugs
4
1
1
1
max. number of hydraulic plugs
4
4
4
4
4
4
4
4
l/min at ΔP=2 bar
DN 10: 40 l/min
DN 10: 40 l/min
DN 10: 40 l/min
DN 10: 40 l/min
DN 10: 40 l/min
DN10: 40 l/min
DN6: 40 l/min ; DN10: 70 l/min
DN10: 40 l/min ; DN12: 70 l/min
Quantity


Product info

  • Technical data
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: Aluminium & Steel
    Material sealing: NBR & PUR
    Surface: MATE 500 (CrIII) & Paint
    Temperature range [°C]: -25°C / +100°C

Benefit

Please refer to our wide spare part list to replace defect components.
