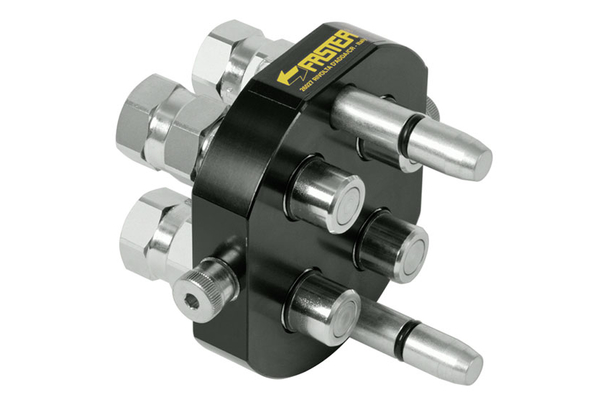

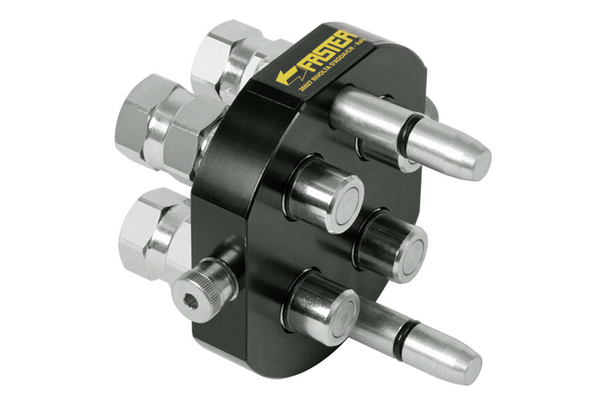

MST5 4x (P508) male coupling DN12 - Cr III

Detail

DN
12
12
12
12
12
12
12
12
12
12
Size
08
08
08
08
08
08
08
08
08
08
working pressure [bar]
250
250
250
250
250
250
250
250
250
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
CE male thread heavy Seriess, DIN 3861
CE male thread light Seriess, DIN 3861
CE male thread light Seriess, DIN 3861
1 - 1/16" - 12 UN FEMALE ORB - ISO 11926-1
BSPP female thread ISO 1179-1
BSPP 1/2" FEMALE - ISO 1179-1
BSP female DIN 3852
CE male thread light Seriess, DIN 3861
Thread [GA]
1/2"
1/2"
M24x1,5
M18X1,5
M22x1,5
UN 1.1/16"-12
G1/2"-14
G1/2"-14
1/2"
M22x1,5
Pipe Ø R [mm]
-
-
16S
12L
15L
-
15L
Number of hydraulic inserts
4
4
4
4
4
4
3
2
3
3
Number of electrical inserts
1
1
1
Series
2P
3P
3P
2P
2P
3P
2P
2P
Manufacturer ID number
2P508-4-12G M C
3P508-4-12G M C
3P508-4-3/24MC
2P508-4-2/18M C
2P508-4-2/22M C
2P508-4-34S M C
3P508-1-3-12GMC
3P508-2-12G M C
2P508-1-3-12GMC
2P508-1-3-2/2MC
max. number of electronic plugs
2
2
2
2
2
2
2
max. number of hydraulic plugs
4
4
4
4
4
4
2
4
4
l/min at ΔP=2 bar
DN 12: 70 l/min
DN 12: 70 l/min
DN 12: 70l/min
DN 12: 70l/min
DN 12: 70l/min
DN12: 70l/min.
70
DN12: 70 l/min
DN 12: 70 l/min
DN 12: 70 l/min
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: plug
    Material: Aluminum & Steel
    Material sealing: NBR & PUR
    Maximum assignment of the multi-coupling: 4
    Resistance against red rust [h]: 500 Std.
    Surface: zinc plated, chrom 6-free
    Temperature range [°C]: -25°C /+100°C

Benefit

Please refer to our wide spare part list to replace defect components.

Accessories

male coupling holder: MST5-4-12SH Sealing plug: MST-KIT-TSP12S

Practical tip

If you have to connect against a residual pressure over 60bar - we recommend to use our 3P Seriess which allows to connect under full working pressure (one way).
