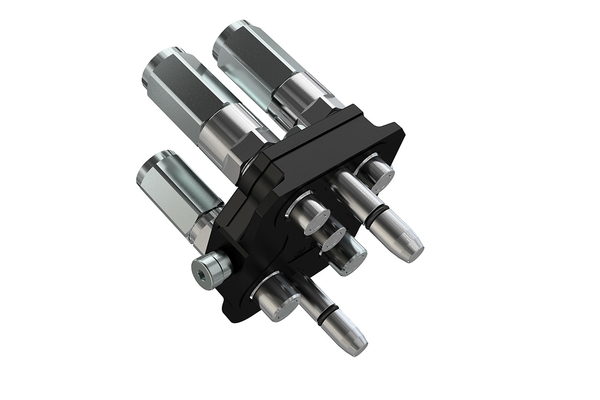

MST5 (P5065) male coupling DN6/10 - Cr III

Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Can be coupled under residual pressure (up to 350 bar). Blocking on both sides, easy connecting and disconnecting via lever system

To accessories

Detail

Art. No.

MST5-S5-04/06BSP10S

MST5-3PS5-09/12UN10S

6 / 10

Size

04 / 06

working pressure [bar]

250

Thread + standard

BSPP 1/4" FEMALE - ISO 1179-1; BSPP 3/8" FEMALE - ISO 1179-1

9/16"-18 UNF FEMALE ORB - ISO 11926-1; 3/4" - 16 UNF FEMALE ORB - ISO 11926-1

Thread [GA]

G1/4"-19; G3/8"-19

9/16"-18 UNF FEMALE ORB; 3/4" - 16 UNF FEMALE ORB

Number of hydraulic inserts

Manufacturer ID number

3P5065-5-F M C

3P5065-5-A M C

max. number of hydraulic plugs

l/min at ΔP=2 bar

DN6: 20 l/min ; DN10: 40 l/min

Quantity

Product info

Technical data

Applications:	industry, agricultural technology , power units, construction machines
Female or male coupling:	plug
Material:	Aluminum & Steel
Material sealing:	NBR & PUR
Surface:	MATE 500 (CrIII) & Paint
Temperature range [°C]:	-25°C /+100°C
