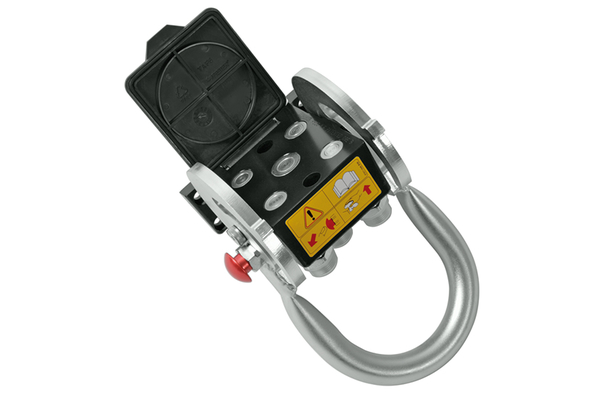

MST5S (P506-1) female coupling DN10/12 - Cr III

Detail

DN
10
10
Size
06
06
working pressure [bar]
250
250
Thread + standard
BSP female DIN 3852
CE male thread light Seriess, DIN 3861
Thread [GA]
3/8"
M22x1,5
Pipe Ø R [mm]
-
15L
Number of hydraulic inserts
4
5
Number of electrical inserts
1
Series
2P
2P
Manufacturer ID number
2P506-1-4-38G F C
2P506-0-5-S4 FC
max. number of electronic plugs
1
1
max. number of hydraulic plugs
5
5
l/min at ΔP=2 bar
DN 10: 40 l/min; DN 12: 70 l/min
DN 10: 40 l/min; DN 12: 70 l/min
Quantity


Product info

  • Technical data
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: Aluminium & Steel
    Material sealing: NBR & PUR
    Maximum assignment of the multi-coupling: 5
    Resistance against red rust [h]: 500 Std.
    Surface: zinc plated, chrom 6-free
    Temperature range [°C]: -25°C / +100°C

Benefit

Please refer to our wide spare part list to replace defect components.
