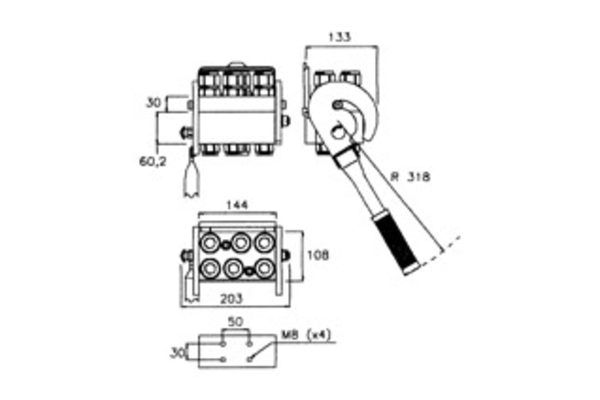

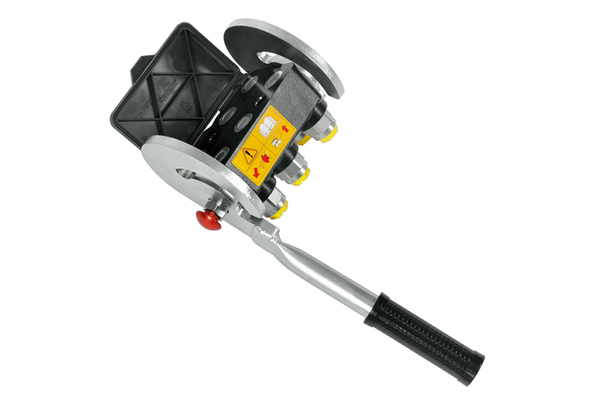

MST6 (P608) female coupling DN12 - Cr III

Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Can be coupled under residual pressure (up to 350 bar). Blocking on both sides, easy connecting and disconnecting via lever system

To accessories

Detail

Art. No.

MST6-6-08BSP12M

MST6-4-12UNF12M

MST6-6-12UNF12M

MST6-6-116UNF12M

MST6-1E-5-08BSP-12M

MST6-3P-6-08BSP-12M

Size

working pressure [bar]

250

Thread + standard

BSP female DIN 3852

ISO 1179-1

Thread [GA]

1/2"

G1/2"-14

BSPP 1/2" FEMALE

Pipe Ø R [mm]

Number of hydraulic inserts

Number of electrical inserts

Series

Manufacturer ID number

2P608-6-12-G F C

2P608-A-5-12GFC

3P608-6-12G F C

max. number of electronic plugs

burst pressure coupled [bar]

100

max. number of hydraulic plugs

l/min at ΔP=2 bar

DN 12: 70 l/min

DN12: 70 l/min

Quantity

Product info

Specifications

Applications:	industry, agricultural technology , power units, construction machines
Material:	Aluminium & Steel
Material sealing:	NBR & PUR
Temperature range [°C]:	-25°C / +100°C
