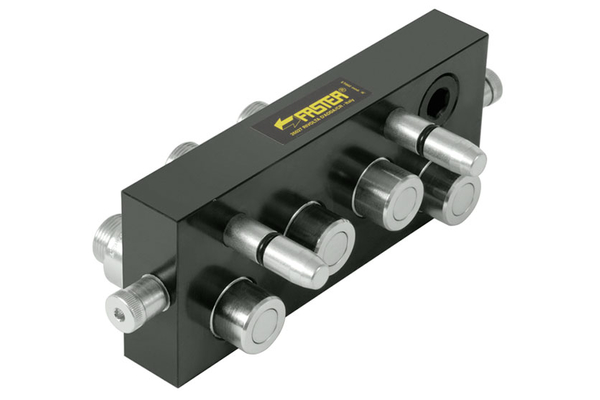

MSTS4 (PS06) male coupling DN10 - Cr III

Detail

DN
10
10
10
10
10
Size
06
06
06
06
06
working pressure [bar]
250
250
250
250
250
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
CE male thread light Seriess, DIN 3861
CE male thread light Seriess, DIN 3861
BSP female DIN 3852
Thread [GA]
3/8"
1/2"
M22x1,5
M22x1,5
1/2"
Pipe Ø R [mm]
-
-
15L
15L
12L
Number of hydraulic inserts
4
4
4
4
4
Number of electrical inserts
1
1
Series
2P
2P
2P
2P
2P
Manufacturer ID number
2PS06-4-38G M C
2PS06-4-12G M C
2PS06-4-2/22M C
2PS06-1-4/22M C
2PS06-1-4-12G M C
max. number of electronic plugs
1
1
1
max. number of hydraulic plugs
4
4
4
4
4
l/min at ΔP=2 bar
DN 10: 40 l/min
DN 10: 40 l/min
DN 10: 40 l/min
DN 10: 40 l/min
DN 10: 40 l/min
Quantity


Product info

  • Specifications
    Female or male coupling: plug
    Maximum assignment of the multi-coupling: 4
    Resistance against red rust [h]: 500 Std.
    Surface: zinc plated, chrom 6-free

Accessories

male coupling holder: MST-S4SH-N Sealing plug: MST-KIT-TSP38S
