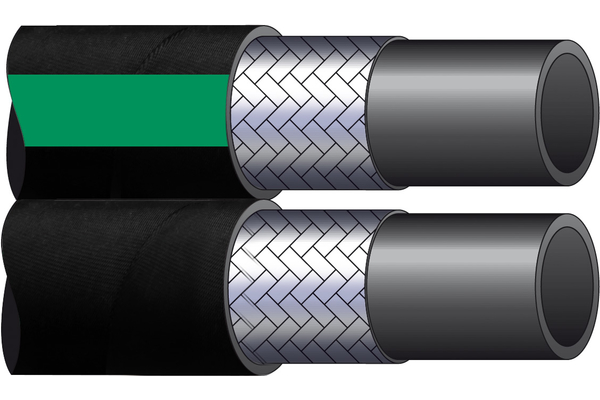

Braided Hose SP1plus FL..S (exceeds EN 857 - 1SC) smooth cover

Detail

DN
8
10
12
Outer Ø [mm]
13,0
15,6
19,0
Inner Ø [mm]
8,0
9,5
12,7
bending radius [mm]
55
60
70
working pressure [bar]
250
250
200
burst pressure [bar]
1000
1000
800
Safety factor
4:1
4:1
4:1
Standard ferrule
Weight [kg]
0,84
0,98
1,564
Static test pressure [bar]
500
500
400
Quantity


Product info

  • Technical data
    Color cover: black
    Color inner tube: black
    Cover: Synthetic rubber, wear resistant
    Inner tube: Synthetic rubber
    MSHA-Approval: nein
    Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
    Reinforcement: 1 layer of high tensile steel wire
    Temperature range [°C]: - 40 ° C to + 100 ° C
