Product info
-
Specifications

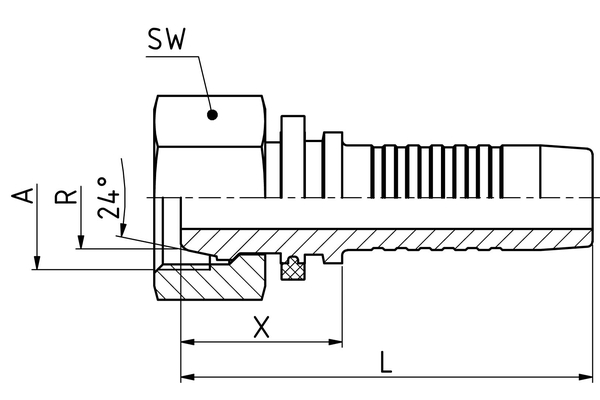

DN: 05 Size: 03 Inch: 3/16 Thread + standard: Sealing cone with union nut light series Connection thread A: M12x1,5 Pipe Ø R [mm]: 6 X [mm]: 22,8 L1 [mm]: 47,7 SW1 [mm]: 14 Connection name Indunorm: MSF Connection type: DKL Construction form: 0° Material: Free cutting steel Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
