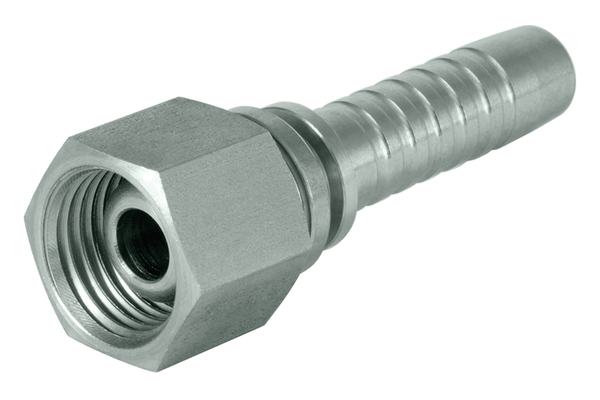

XV14MSF08-04
DKL MSF

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M14x1,5
  Pipe Ø R [mm]:	8
  X [mm]:	24,8
  L1 [mm]:	55,0
  SW1 [mm]:	17
  Connection name Indunorm:	MSF
  Connection type:	DKL
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
