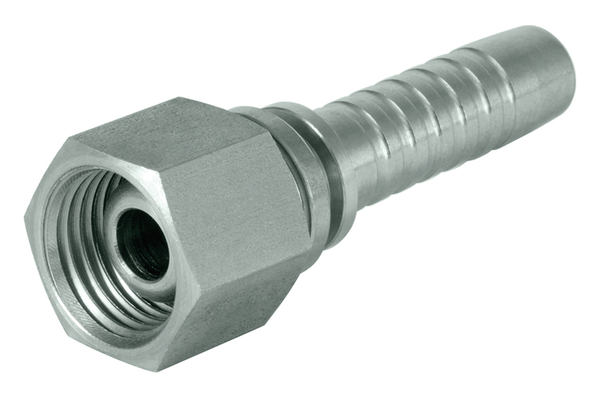

XV18MSF12-05
DKL MSF

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Thread + standard:	Sealing cone with union nut light series

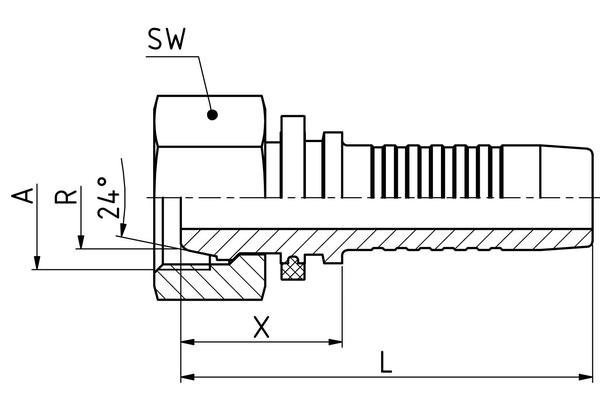

  Connection thread A:	M18x1,5
  Pipe Ø R [mm]:	12
  X [mm]:	27,3
  L1 [mm]:	57,5
  SW1 [mm]:	22
  Connection name Indunorm:	MSF
  Connection type:	DKL
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
