Product info
-
Technical data

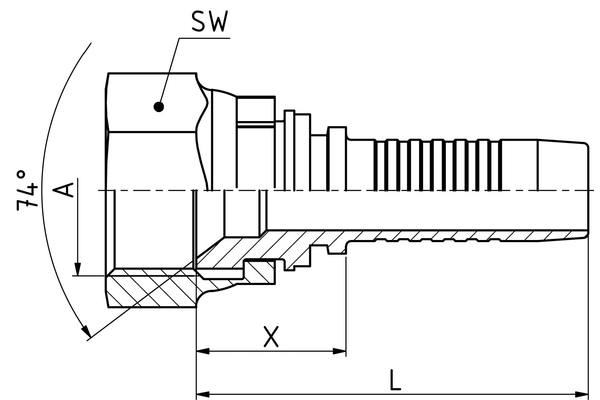

DN: 05 Size: 03 Inch: 3/16 Thread + standard: JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread Connection thread A: 7/16"-20 UNF X [mm]: 14,8 L1 [mm]: 37,8 SW1 [mm]: 14 Type of nut: CR Connection name Indunorm: JF Connection type: DKJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
