Product info
-
Specifications

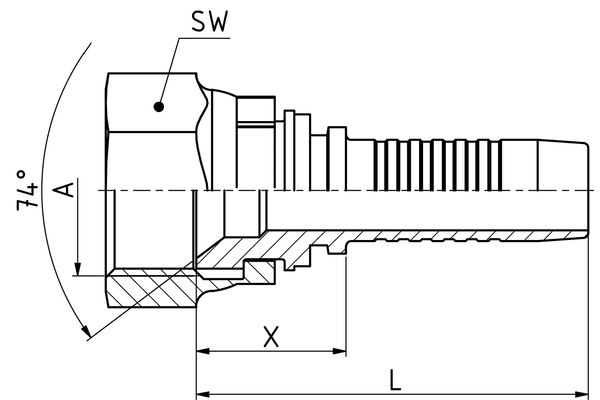

DN: 10 Size: 06 Inch: 3/8 Thread + standard: JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread Connection thread A: 1/2"-20 UNF X [mm]: 16,8 L1 [mm]: 50,3 SW1 [mm]: 17 Type of nut: CR Connection name Indunorm: JF Connection type: DKJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
