Product info
-
Specifications

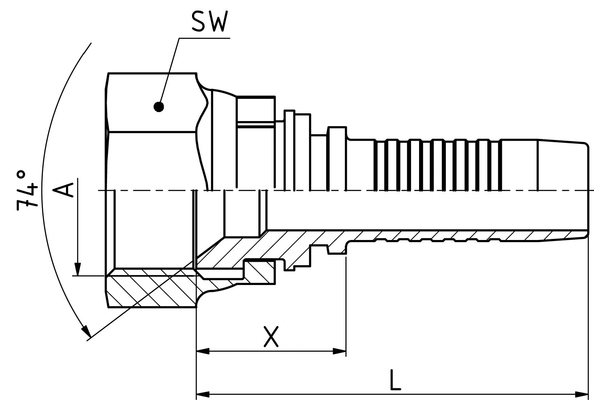

DN: 06 Size: 04 Inch: 1/4 Thread + standard: JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread Connection thread A: 9/16"-18 UNF X [mm]: 15,9 L1 [mm]: 42,4 SW1 [mm]: 19 Type of nut: CR Connection name Indunorm: JF Connection type: DKJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
