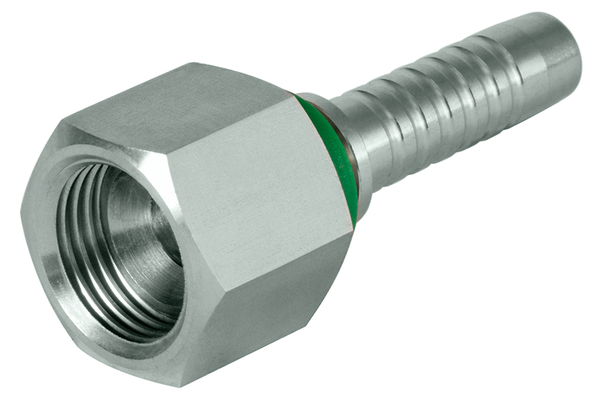

XV09JF06
DKJ JF

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	9/16"-18 UNF

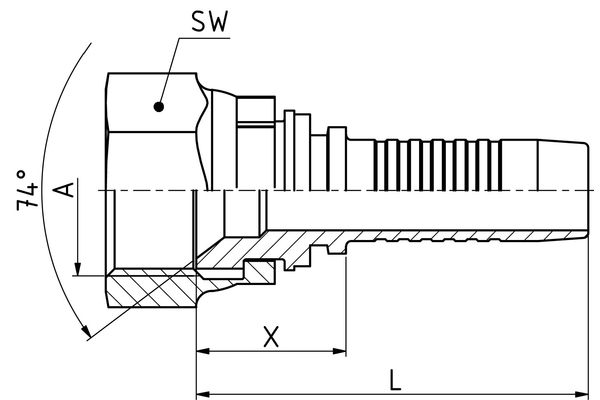

  X [mm]:	17,0
  L1 [mm]:	50,5
  SW1 [mm]:	19
  Type of nut:	CR
  Connection name Indunorm:	JF
  Connection type:	DKJ
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
