Product info
-
Technical data

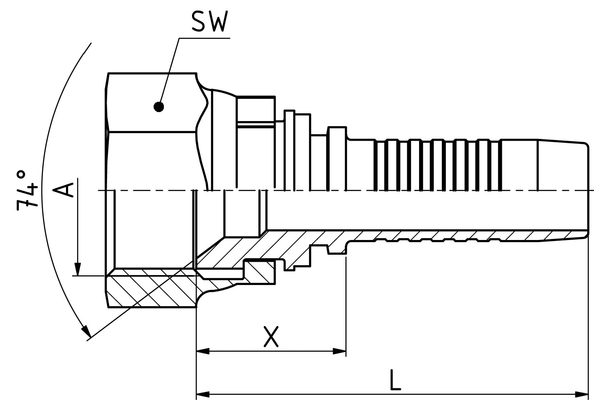

DN: 16 Size: 10 Inch: 5/8 Thread + standard: JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread Connection thread A: 7/8"-14 UNF X [mm]: 19,5 L1 [mm]: 58,0 SW1 [mm]: 27 Type of nut: CR Connection name Indunorm: JF Connection type: DKJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: Zinc-Nickel Type of fittings: Universal series XV
